T/T, Tilt & Turn System,
Soction of KUMO Smart Sash
226m/m Large Double Window,
115m/m Large Short window
126m/m balcony widows,
Short window school window
186m/m Small Double Window,
96m/m Sliding panel windows
PVC sash and door-frame reinforcer, List of Reinforcement Steel


Reinforcing materials manufactured through the foaming method

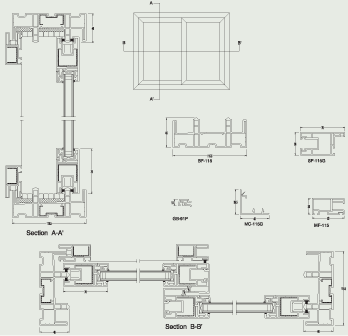

226m/m Large Double Window



Usable materials
No Name
1 BF-226
2 SF-115G
3 MC-115G
4 GB-91P
5 MF-115

115m/m Large Short window



Usable materials
No Name
1 BF-226
2 SF-115G
3 MC-115G
4 GB-91P
5 MF-115


Characteristics
Prevent rainwater inflow by raising the height of rail raise
Structural stability (surrounding structure)
A product that maximized Thermal efficiency Special gasket
Increase of window-frame bending and welding intensity
Increase of screen intensity and formation of door-knob structure
Flexible selection of outer color
Color Types
White, inner wood-pattern, outer color (Green and Dark Brown)
Maximum size production
3600(W)X2400(H) : Maximum size
Glass thickness
SF-115F+GB-94:3~5m/m application, GB-91P.16m/m application
Applicability
Proper for inner sliding windows that have capability of condensation prevention,
sound insulation, and heat insulation
